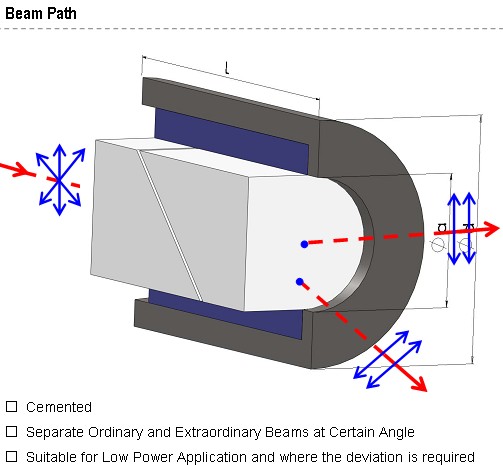

Items

Specification

Material

α-BBO, MgF2, YVO4, Calcite or Quartz

Wavelength Range

α-BBO: 200-3500nm; MgF2: 130-4000nm;  YVO₄:500-4000nm, Quartz 200-2300nm             Calcite 350-2300nm

Extinction Ratio

α-BBO:< 5×10 ^-6; Quartz:< 5×10 ^-5;

MgF2:< 5×10 ^-6  YVO₄:< 5×10 -^6,

Calcite:< 5×10 ^-5

Dimension Tolerance

±0.1mm

Surface Quality

scratch and dig 20-10

Beam Deviation:

< 3 arc minutes

Wavefront Distortion

<λ/4 @632.8 nm

Damage Threshold

> 500MW/cm²

Coating

Single Layer MgF2

Mount

Black Anodized Aluminum

Part NO.

Extinction

Ratio

Separation     Angle (°)

C.A.    φa

OD    φd

L

WSP6006

< 5×10 ^-6

15°-27°     16°@800nm

5.0

15.0

9.0

WSP6008

7.0

25.4

11.0

WSP6010

9.0

25.4

13.0

WSP6015

13.5

30.0

18.0

WSP6020

18.0

38.0

24.0

Part NO.

Extinction

Ratio

Separation     Angle (°)

C.A.    φa

OD    φd

L

WSP7006

5×10 ^-5

16.7-22.5°       19°@980nm

5.0

15.0

9.0

WSP7008

7.0

25.4

11.0

WSP7010

9.0

25.4

13.0

WSP7015

13.5

30.0

18.0

WSP7020

18.0

38.0

24.0

Part NO.

Extinction

Ratio

Separation     Angle (°)

C.A.    φa

OD    φd

L

WSP9006

< 5×10 ^-5

  2°-3°        2°@1064nm

5.0

15.0

14.0

WSP9008

7.0

25.4

18.0

WSP9010

9.0

25.4

22.0

WSP9015

13.5

30.0

32.0

WSP9020

18.0

38.0

44.0

Part NO.

Extinction

Ratio

Separation     Angle (°)

C.A.    φa

OD    φd

L

WSP8006

< 5×10 ^-6

19.6°-23.3°       20°@1550nm

5.0

15.0

8.0

WSP8008

7.0

25.4

10.0

WSP8010

9.0

25.4

12.0

WSP8015

13.5

30.0

16.0

WSP8020

18.0

38.0

21.0

Part NO.

Extinction

Ratio

Separation     Angle (°)

C.A.    φa

OD    φd

L

WSP5006

< 5×10 ^-6

2.7°@532nm

5.0

15.0

14.0

WSP5008

7.0

25.4

18.0

WSP5010

9.0

25.4

22.0

WSP5015

13.5

30.0

32.0

WSP5020

18.0

38.0

44.0
