Protected Silver Mirrors > Protected Silver Mirror FS

Introduction

Protected silver offers high reflectance throughout the visible and near infrared spectra with excellent durability. A roprietary overcoat and edge seal prevent the silver from rapidly oxidizing and deteriorating. Protected silver has higher reflectance than aluminum throughout the visible and near-infrared spectra.



Standard Specifications




Items

Specifications

Material

Fused Silica

Designed Wavelength

546.1 nm

Designed Index

1.46008±0.0005

Dimension Tolerance

+0.0/-0.2 mm

Thickness Tolerance

± 0.2 mm

Clear Aperture

> 80%

Parallelism

< 3 arc minutes

Flatness

λ/4 at 632.8 nm (Substrates)

Surface Quality

scratch and dig 60-40 (Substrates)

Bevel

0.5 (0/-0.3) mm

Angle of incidence

45°

Coating

R avg ≥95% @ 400–2000 nm

Notes:

1. Surface Quality could reach 40-20, 20-10

2. Parallelism such as 30” , 10”, 5” is available.

3. Please show us the size and the coating specification.

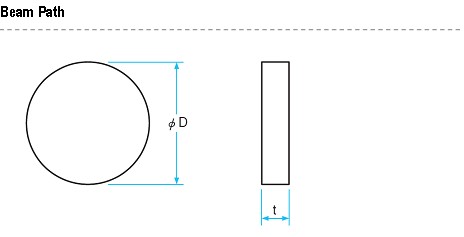

Part NO.

D(mm)

t(mm)

Rear Surface

MPS1101

10.0

3.0

Ground

MPS1102

10.0

5.0

Ground

MPS1103

12.7

3.0

Ground

MPS1104

12.7

5.0

Ground

MPS1105

15.0

3.0

Ground

MPS1106

15.0

5.0

Ground

MPS1107

20.0

3.0

Ground

MPS1108

20.0

5.0

Ground

MPS1109

20.0

6.0

Ground

MPS1110

25.4

3.0

Ground

MPS1111

25.4

5.0

Ground

MPS1112

25.4

6.0

Ground
