Ultra Broadband Dielectric Mirrors > Dielectric Mirror BK7

Introduction

Ultra Broadband Dielectric Mirrors are manufactured using all dielectric multi-layer coatings of alternating high and low index layers. These are specifically designed for use at 45 degrees angle of incidence. The mirrors are designed to achieve broad reflection like never before. Visible near infrared and other multiple wavelengths are covered with single mirror.



Standard Specifications




Items

Specifications

Material

BK7 Grade A or equivalent Optical Glass

Designed Wavelength

546.1 nm

Designed Index

1.5183 ±0.0005

Dimension Tolerance

+0.0/-0.2 mm

Thickness Tolerance

± 0.2 mm

Clear Aperture

>80%

Parallelism

< 3 arc minutes

Flatness

λ/4 at 632.8 nm (Substrates)

Surface Quality

scratch and dig 60-40 (Substrates)

Bevel

0.5 (0/-0.3) mm

Angle of incidence

45°

Coating

R avg ≥97% @ 400–1100 nm

Notes:

1. Surface Quality could reach 40-20, 20-10

2. Parallelism such as 30” , 10”, 5” is available.

3. Please show us the size and the coating specification.

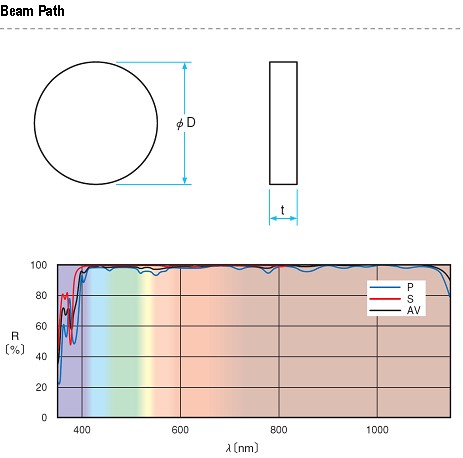

Part NO.

D(mm)

t(mm)

Rear Surface

MUD0101

10.0

3.0

Ground

MUD0102

10.0

5.0

Ground

MUD0103

12.7

3.0

Ground

MUD0104

12.7

5.0

Ground

MUD0105

15.0

3.0

Ground
