Introduction

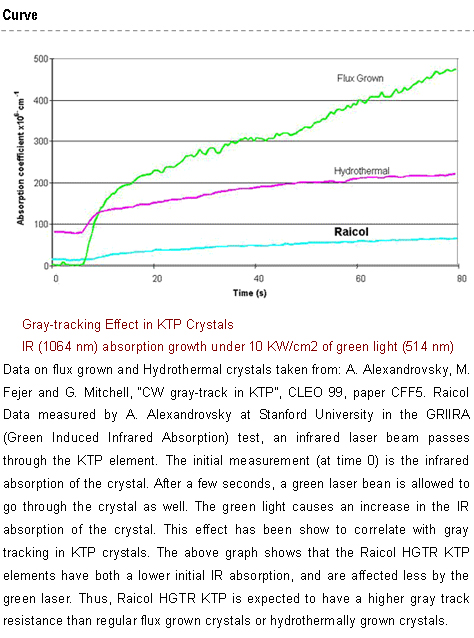

HGTR-KTP: High Gray Track Resistance (HGTR) KTP for CW and high average power SHG HGTR KTP crystals have gray track resistance sufficiently greater that typical flux grown KTP. This is possible due to advances in the controlled growth of KTP crystals using proprietary modified fluxes and heat treatment. These HGTR KTP crystals are suitable for high power density applications where regular flux-grown KTP crystals would suffer from gray track damage.




Standard Specifications




Items

Specifications

Aperture

up to 8 x 8 mm²

Length

up to 12 mm

Phase-matching accuracy

¡À 0.5¡ã

Flatness

¦Ë/10

Parallelism

Standard: 20 arc sec
On request: 5 arc sec

Perpendicularity

5 arc min

Surface Quality

none at x 100 magnification

DBAR coating

R < 0.2 % @ 1064 & 532 nm

Damage threshold

DBAR coated: > 750 MW/cm² @ 1064 nm,

10 nsec pulse

Uncoated: > 750 MW/cm² @ 1064 nm,
10 nsec pulse
