Potassium Titanyle Arsenate (KTiOAsO4) or KTA crystal is an excellent nonlinear optical crystal for Optical Parametric Oscillation (OPO) application. It has better non-linear optical and electro-optical coefficients significantly reduced absorption in the 2.0-5.0 µm region broad angular and temperature bandwidth low dielectric constants. And its low ionic conductivities result in higher damage threshold compared with KTP.
Standard

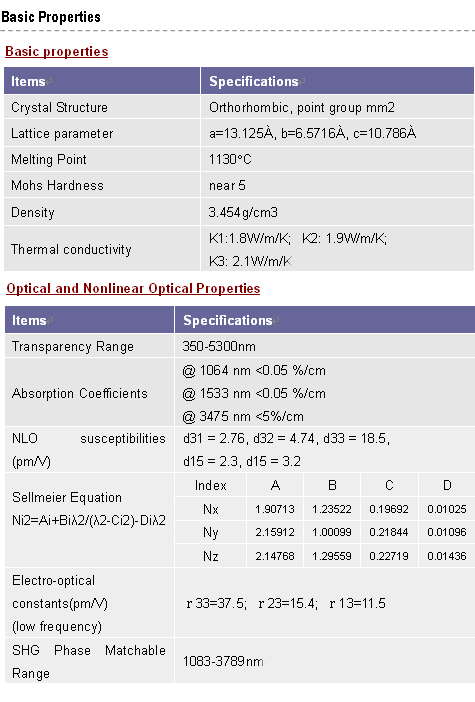

Specifications
Crystal length from 0.1mm to 30mm and size up to 15x15x30mm
AR-coating from visible to 3300nm
Re-polishing, re-coating service
Fast delivery (10 working days for polished only, 15 working days for AR-coated)
