LaBr3:Ce Scintillation Probe > LaBr3Ce Scintillation Probe

Introduction

The scintillation probe of LaBR series are made up of LaBr3:Ce fast-response photomultiplier voltage division circuit fast-response charge sensitive preamplifier and the metal case. Because the optimal design of direct coupling the probe has many advantages like the high energy resolution good energy linear and the fast response. It widely used in nuclear detection technology.



Standard Specifications


  Main technical indicators

Items

Specification

Dimension

Diameter Ф25～Ф75mm

Height   10～200mm

Photon Conversion Efficiency

62000 photon/MeV

Energy Resolution:

(3～3.9)% @ 662 keV

Nonlinear Energy

≤5% @ 50 keV ～1.3 MeV

Output Amplitude

0.5～1V/MeV photon

Energy Signal Output Waveform

positive pulse index. Rise time is 12ns.back porch is 2μs.Amplitude depends on the high pressure

Output Impedance

50 ohm

Temperature Coefficient of Output Signals

≤±0.1% /℃  ( -10 to +50℃)

  Power Supply Requirement

(1)Low tension：±12V DC stabilized power supply

    Current consumption: Less than 20 mA

(2)HVDC

   ①Positive or negative polarity

   ②500～1000V

   ③Current consumption≤0.4mA

   ④Output Ripple Voltage≤2mV(peak value)

  Outside Dimension and Weight

Probe Model

External Dimensions

(mm)

Weight (not include cable and crystal) Kg

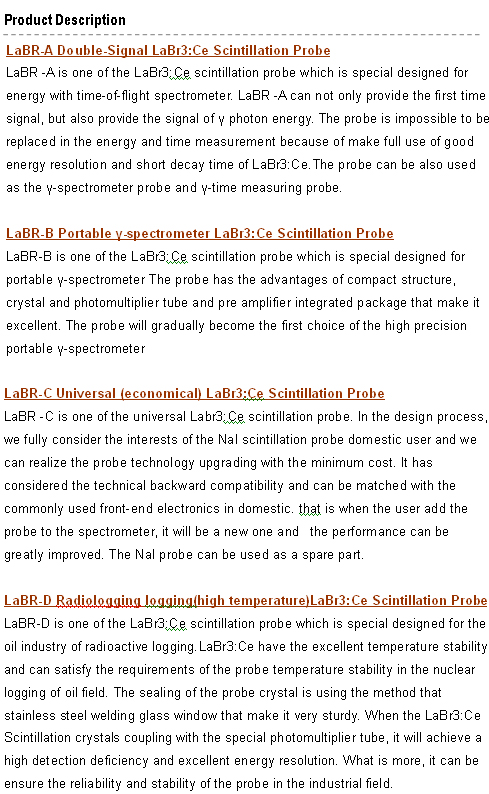

LaBR-A

Ф70×301

~ 0.98

LaBR-B

Ф61×204

~ 0.6

LaBR-C

Ф65×310

~0.95

LaBR-D

Ф65×310

~0.95
