Micro Lenses > Ball lens BK7

Introduction

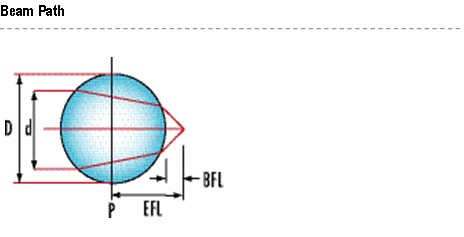

Spherical Ball Lenses are commonly used for laser collimating and focusing laser-to-fiber coupling fiber-to-fiber coupling and fiber-to-detector coupling. Larger spheres are easier to handle and ease the sensitivity of translational alignment. However smaller spheres have the benefit of fitting into smaller packages.



Standard Specifications




Items

Specifications

Material

BK7 Grade A or equivalent Optical Glass

Designed Wavelength

546.1 nm

Designed Index

1.5183 ±0.0005

Dimension Tolerance

+0.0/-0.05mm

Clear Aperture

> 85%

Surface Quality

scratch and dig 60-40

Notes:

1. Material, besides BK7, sapphire, CaF2, BaF2 and any other materials are available.
