Zinc Selenide > Mirror ZnSe

Introduction

Zinc selenide (ZnSe) is the most popular material for infrared applications. Due to very wide transmission range covering 0.6-22 µm chemical vapor deposition grown ZnSe as a high optical quality material is used to manufacture optical components (windows mirrors lenses) for high power IR lasers.



Standard Specifications




Items

Specifications

Material

Zinc Selenide (ZnSe)

Designed Index

2.403 @ 10.6µm

Density

5.27g/cm3

Heat Transfer Coefficient

18 W/m・K

Expansion Rate

7.6×10-6/ ℃

Dimension Tolerance

+0.0/-0.2 mm

Thickness Tolerance

± 0.2 mm

Clear Aperture

> 90%

Parallelism

< 1 arc minutes

Flatness

λ/20 at 10.6µm (Substrate)

Surface Quality

scratch and dig 40-20 (Substrate)

Coating

Ravg≥99% (Protective Au Coating)

Bevel

0.5 (0/-0.3) mm

Notes:

1. Surface Quality could reach 20-10

2. Please show us the size and the coating specification.

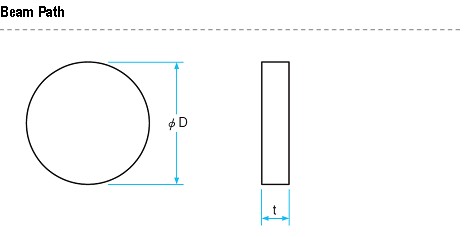

Part NO.

D(mm)

t(mm)

IMZ0101

12.7

2.0

IMZ0102

25.4

2.0

IMZ0103

25.4

3.0
