Sapphire > Window Sapphire

Introduction

Used as transparent barriers for sending and receiving light between two phases under varying conditions in temperature pressure chemical composition cleanliness and phase. Windows of synthetic optical sapphire crystal are highly abrasion-resistant with hardness approaching that of diamonds. The material allows transmission of light in the range from ultraviolet to near-infrared.



Standard Specifications





Items

Standard Precision

High Precision

Material

Anisotropic crystalline synthetic sapphire

Density

3.98 g/cm3

Refractive Index

1.833 (265nm)

1.793 (365nm)

1.785 (405nm)

1.76  (630nm)

1.755 (1014nm)

Diameter

Ф 5 mm – Ф 50.8 mm

Dimension Tolerance

+0.0/-0.2 mm

+0.0/-0.05mm

Thickness Tolerance

± 0.2 mm

± 0.05mm

Clear Aperture

> 90%

Parallelism

< 3 arc minutes

< 10 arc seconds

Flatness

λ at 632.8 nm

λ/4 at 632.8 nm

Surface Quality

scratch and dig 60-40

scratch and dig 40-20

Bevel

0.5 (0/-0.3) mm

Notes:

Please show us the size and the coating specification.




Banner Union Standard Products with standard precision.

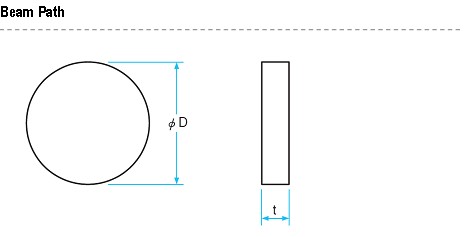

Part NO.

D(mm)

t(mm)

ISW0101

20.0

2.0

ISW0102

25.0

2.0

ISW0103

30.0

2.0

ISW0104

40.0

2.0

ISW0105

50.0

2.0
