Right Angle Prisms > BK7 Right Angle Prism

Introduction

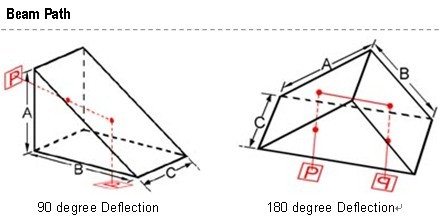

A Right Angle Prism is used as a mirror to deviate light through 90 degree and also as a retro reflector to deflect light through 180 degree by total internal reflection. 90 degree deflection occurs at the hypotenuse face. The image is erected and reversed. 180 degree deflection uses the hypotenuse as the entrance and exit face.



Standard Specifications




Items

Specification

Material

BK7 Grade A or equivalent Optical Glass

Dimension Tolerance

±0.20 mm

Clear Aperture

> 80%

Surface Quality

scratch and dig 60-40

Angle Tolerance

30 arc seconds

Flatness

λ/2 at 632.8 nm

Notes:

1. Material besides BK7, ZF1, ZF13, Sapphire and any other optical glass is avalible.

2. Angle tolerance such as 3’, 1’, 10” is available.

3. Surface Quality we could reach 20-10 scratch and dig.

4. Please show us the size and the coating specification.




Angle Tolerance: 3 min.

Size (mm)

Part NO.

Angle Tolerance

A=B=C=2.0

PRA0101

3 min.

A=B=C=3.2

PRA0102

3 min.

A=B=C=5.0

PRA0103

3 min.

A=B=C=10.0

PRA0104

3 min.

A=B=C=12.7

PRA0105

3 min.

A=B=C=15.0

PRA0106

3 min.

A=B=C=20.0

PRA0107

3 min.

A=B=C=25.4

PRA0108

3 min.

A=B=C=30.0

PRA0109

3 min.

Angle Tolerance: 1 min.

Size (mm)

Part NO.

Angle Tolerance

A=B=C=2.0

PRA0201

1 min.

A=B=C=3.2

PRA0202

1 min.

A=B=C=5.0

PRA0203

1 min.

A=B=C=10.0

PRA0204

1 min.

A=B=C=12.7

PRA0205

1 min.

A=B=C=15.0

PRA0206

1 min.

A=B=C=20.0

PRA0207

1 min.

A=B=C=25.4

PRA0208

1 min.

A=B=C=30.0

PRA0209

1 min.

Angle Tolerance: 30 sec.

Size (mm)

Part NO.

Angle Tolerance

A=B=C=2.0

PRA0301

30 sec.

A=B=C=3.2

PRA0302

30 sec.

A=B=C=5.0

PRA0303

30 sec.

A=B=C=10.0

PRA0304

30 sec.

A=B=C=12.7

PRA0305

30 sec.

A=B=C=15.0

PRA0306

30 sec.

A=B=C=20.0

PRA0307

30 sec.

A=B=C=25.4

PRA0308

30 sec.

A=B=C=30.0

PRA0309

30 sec.
