Right Angle Prisms > BK7 Laser Grade Right Angle Prism

Introduction

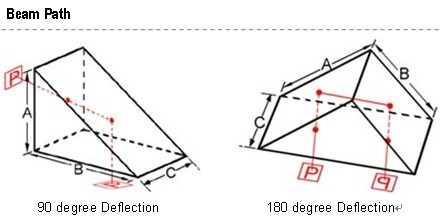

A Right Angle Prism is used as a mirror to deviate light through 90 degree and also as a retro reflector to deflect light through 180 degree by total internal reflection. 90 degree deflection occurs at the hypotenuse face. The image is erected and reversed 180 degree deflection uses the hypotenuse as the entrance and exit face.

Standard Specifications

Items	Specification
Material	BK7 Grade A or equivalent Optical Glass
Dimension Tolerance	±0.20 mm
Clear Aperture	> 80%
Surface Quality	scratch and dig 20-10
Angle Tolerance	< 3’
Flatness	λ/10at 632.8 nm

Notes:

1. Material besides BK7, ZF1, ZF13, Sapphire and any other optical glass is available.

2. Angle tolerance such as 3’, 1’, 10” is available.

3. Please show us the size and the coating specification.

Angle Tolerance: 3 min.

Size (mm)	Part NO.	Angle Tolerance
A=B=C=2.0	PRA2101	3 min.
A=B=C=3.2	PRA2102	3 min.
A=B=C=5.0	PRA2103	3 min.
A=B=C=10.0	PRA2104	3 min.
A=B=C=12.7	PRA2105	3 min.
A=B=C=15.0	PRA2106	3 min.
A=B=C=20.0	PRA2107	3 min.
A=B=C=25.4	PRA2108	3 min.
A=B=C=30.0	PRA2109	3 min.

Angle Tolerance: 1 min.

Size (mm)	Part NO.	Angle Tolerance
A=B=C=2.0	PRA2201	1 min.
A=B=C=3.2	PRA2202	1 min.
A=B=C=5.0	PRA2203	1 min.
A=B=C=10.0	PRA2204	1 min.
A=B=C=12.7	PRA2205	1 min.
A=B=C=15.0	PRA2206	1 min.
A=B=C=20.0	PRA2207	1 min.
A=B=C=25.4	PRA2208	1 min.
A=B=C=30.0	PRA2209	1 min.

Angle Tolerance: 30 sec.

Size (mm)	Part NO.	Angle Tolerance
A=B=C=2.0	PRA2301	30 sec.
A=B=C=3.2	PRA2302	30 sec.
A=B=C=5.0	PRA2303	30 sec.
A=B=C=10.0	PRA2304	30 sec.
A=B=C=12.7	PRA2305	30 sec.
A=B=C=15.0	PRA2306	30 sec.
A=B=C=20.0	PRA2307	30 sec.
A=B=C=25.4	PRA2308	30 sec.
A=B=C=30.0	PRA2309	30 sec.
