Dove Prisms > BK7 Dove Prism

Introduction

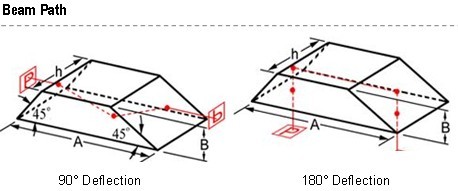

Dove prisms are used as image rotators in variety of optic-mechanical system. As the prism is rotated the image passing through will rotate at twice the angular rate of the prism. Light entering the dove prism must be parallel or collimated because the length of the prism is four or five times the height of the prism. The hypotenuse face of a dove prism is the face of the largest area. Normally the dove prism is used in the total internal reflection mode with the hypotenuse face un-aluminized.Cleanliness of this face is important



Standard Specifications



Items

Specifications

Material

BK7 Grade A or equivalent Optical Glass

Dimension Tolerance

+0.0/-0.2 mm

Clear Aperture

> 80%

Deviation

± 3 arc minutes

Flatness

λ/2 at 632.8 nm

Surface Quality

scratch and dig 60-40

Bevel

0.5 (0/-0.3) mm

Notes:

1. Material, besides BK7, SF11 and any other materials are available.

2. Surface Quality could reach 40-20 or 20-10

3. Deviation tolerance such as 1’ ,30” ,10” is available.

4. Flatness could reach λ/4 at 632.8 nm

5. Please show us the size and the coating specification.






Part NO.

A (mm)

B (mm)

H (mm)

PDE0101

21.1

5.0

5.0

PDE0102

42.3

10.0

10.0

PDE0103

63.4

15.0

15.0

PDE0104

80.0

20.0

20.0
