Micro Prisms > Micro Penta Prism

Introduction

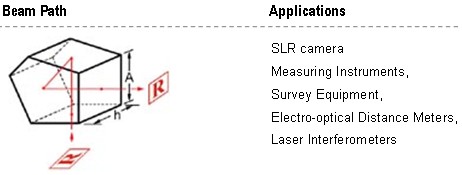

Penta prism can deviate an incident beam without inverting or reversing to 90°.The deviation angle of 90° is independent of any rotation of the prism about an axis parallel to the line of intersection of the two reflecting faces. It is commonly used in Plumb Level Surveying Alignment Range finding and Optical Tooling. The reflecting surfaces of this Prism must be coated with a metallic or dielectric coating. The standard Penta Prism reflecting surfaces are coated with aluminum or enhanced aluminum.



Standard Specifications




Items

Specification

Material

BK7 Grade A or equivalent Optical Glass

Dimension Tolerance

± 0.20 mm

Surface Quality

scratch and dig 60-40

90° Deviation Tolerance

30 arc seconds

Flatness

λ/4 at 632.8 nm

Reflectivity

R > 95% @1550 nm

Notes:

1. Material, besides BK7, any other materials are available.

2. Deviation tolerance such as 1’, 30” is available.

3. Please show us the size and the coating specification.





90° deviation   1 arc minutes

A×h (mm)

Part NO.

2.5×2.5

MPP0101

90° deviation   30 arc seconds

A×h (mm)

Part NO.

2.5×2.5

MPP0201
