Introduction

Used as transparent barriers for sending and receiving light between two phases under varying conditions in temperature pressure chemical composition cleanliness and phase. Quartz transmits well over the UV region and is thus the choice for low cost UV window material.



Standard Specifications




Items

Specifications

Material

Quartz Glass

Dimension Tolerance

+0.0/-0.2 mm

Thickness Tolerance

± 0.2 mm

Clear Aperture

> 90%

Parallelism

< 3 arc minutes

Flatness

λ/2 at 632.8 nm

Surface Quality

scratch and dig 60-40

Bevel

0.5 (0/-0.3) mm

Notes:

1. Surface Quality could reach 40-20.

2. Parallelism could reach 1' or 30".

3. Please show us the size and tolerance.

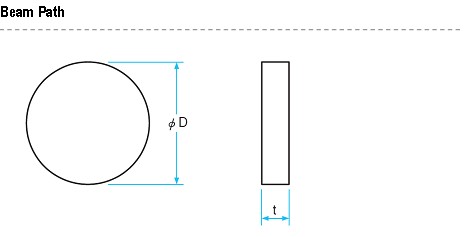

Part NO.

D(mm)

t(mm)

WNQ0101

12.7

3.0

WNQ0102

12.7

5.0

WNQ0103

15.0

2.0

WNQ0104

15.0

3.0

WNQ0105

25.4

2.0

WNQ0105

25.4

3.0
