Introduction

Used as transparent barriers for sending and receiving light between two phases under varying conditions in temperature pressure chemical composition cleanliness and phase. Fused Silica windows are used for visible and near IR. AR coated Fused Silica windows allowed more than 99％ transmittance comparing with 92％ of uncoated one.



Standard Specifications




Items

Specifications

Material

Fused Silica

Designed Wavelength

546.1 nm

Designed Index

1.46008±0.0005

Dimension Tolerance

+0.0/-0.2 mm

Thickness Tolerance

± 0.2 mm

Clear Aperture

> 90%

Parallelism

< 1 arc minutes

Flatness

λ/4 at 632.8 nm

Surface Quality

scratch and dig 60-40

Bevel

0.5 (0/-0.3) mm



Notes:

1. Surface Quality could reach 40-20, 20-10

2. Parallelism such as 30” , 10”, 5” is available.

3. Please show us the size and the coating specification.



  ,, ,

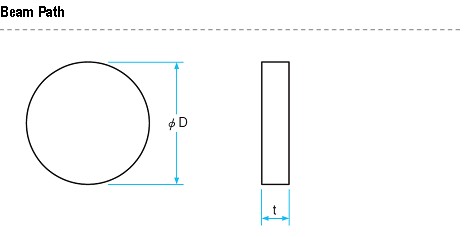

Part NO.

D(mm)

t(mm)

Coating

WND2101

12.7

3.0

uncoated

WND2102

12.7

5.0

uncoated

WND2103

15.0

2.0

uncoated

WND2104

15.0

3.0

uncoated

WND2105

20.0

2.0

uncoated

WND2106

20.0

3.0

uncoated

WND2107

25.0

2.0

uncoated

WND2108

25.0

3.0

uncoated

WND2109

25.4

3.0

uncoated

WND2110

25.4

5.0

uncoated

WND2111

30.0

2.0

uncoated

WND2112

30.0

3.0

uncoated

WND2113

40.0

4.0

uncoated

WND2114

50.0

5.0

uncoated

WND3101

12.7

3.0

T>99% @ 400-700 nm

WND3102

12.7

5.0

T>99% @ 400-700 nm

WND3103

15.0

2.0

T>99% @ 400-700 nm

WND3104

15.0

3.0

T>99% @ 400-700 nm

WND3105

20.0

2.0

T>99% @ 400-700 nm

WND3106

20.0

3.0

T>99% @ 400-700 nm

WND3107

25.0

2.0

T>99% @ 400-700 nm

WND3108

25.0

3.0

T>99% @ 400-700 nm

WND3109

25.4

3.0

T>99% @ 400-700 nm

WND3110

25.4

5.0

T>99% @ 400-700 nm

WND3111

30.0

2.0

T>99% @ 400-700 nm

WND3112

30.0

3.0

T>99% @ 400-700 nm

WND3113

40.0

4.0

T>99% @ 400-700 nm

WND3114

50.0

5.0

T>99% @ 400-700 nm
